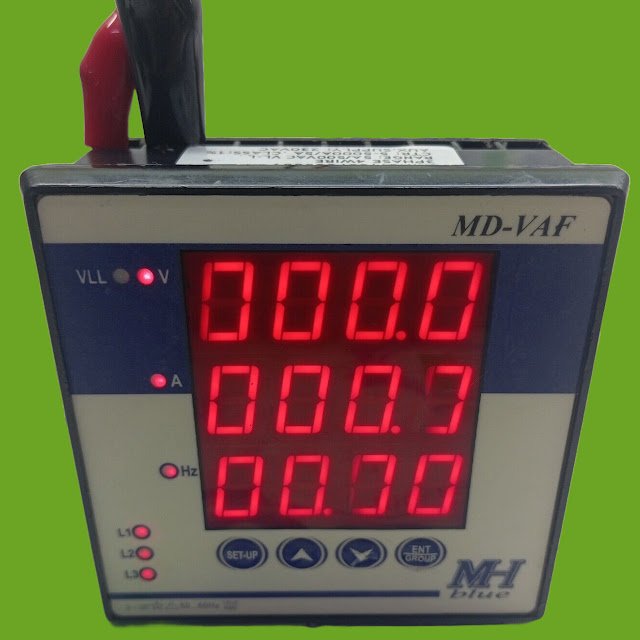

MunHean MH Blue MD-VAF Multifunctional Digital Panel Meter MD VAF 3-Phase 4-Wire

Description

Range: 5A/500VAC VL-L
CTR: 5-5000A/5A
Aux Supply: 230VAC
Measure: Voltage – Current – Frequency
Display Range: 5-5000A
Electric Network: 3-Phase 4-Wire
Display Control: Selectable L1, L2 , L3
Size: 96x96mm
Weight: 410gm
Class: 1%
Type of measurement: True RMS Value
Accuracy: Class 1.0 Standard – Class 0.5 upon request – 0.1Hz for Frequency meter
Display type: High brightness 7 Segment LED Display, 4-Digits numeric reading

MD Series
The MD Series of Digital Panel Meters provides dedicated measurement for the monitoring of
electrical power systems. Built with simplicity in mind, the MD Series Digital Meters are easy to
install and operate. They are suitable for use on electrical switch-boards, equipment control
panels, motor control panels and generator control boards.

Features
True RMS measurement, User Selectable CT Ratio, Bright Easy to Read LED Display, Finger Proof Self-Lifting Connection Terminals

MH Blue MD-VAF
MH Blue MD-VAF is a multifunctional digital panel meter designed for monitoring various electrical parameters in industrial and commercial applications. It offers a comprehensive set of measurement capabilities, making it a valuable tool for electrical system management.

Key Features and Benefits:
Multiple Measurements: The MD-VAF can accurately measure voltage, current, power factor, frequency, and combined volt-amp-frequency.
True RMS Measurement: Ensures precise measurements for non-sinusoidal waveforms.
User-Friendly Interface: The meter’s intuitive interface makes it easy to set up and operate.
Compact Design: The MD-VAF has a compact footprint, making it suitable for various panel sizes.
High Accuracy: Offers accurate readings within specified tolerances.

Applications:
Electrical Switchboards: Monitoring power distribution and load.
Equipment Control Panels: Supervising the performance of industrial equipment.
Motor Control Panels: Tracking motor power consumption and efficiency.
Generator Control Boards: Monitoring generator output and performance.

CarbonSmart Automation is not an authorized distributor for MunHean products and parts.

© All the pictures are Organic and this part is physically in our stock.
